Aluminum Storefront Systems
Design, Strength and Efficiency in One Solution
Aluminum Storefront Systems
We are industry leaders in manufaturing aluminum storefront systems, combining modern aesthetics with superior functionality. Our systems are engineered to meet the highest standards in commercial and architectural markets, delivering durable, customizable and ready-to-install solutions.
From shopping centers to incorporate facades, we provide structures that elevate design and enhance building performance.
❄️ Thermally Broken Design
🛡️ Reinforced Security for Commercial Spaces
🔒 Impact Resistant Glass
Engineered for Demanding Projects
Our storefront sytems are available in multiple sizes,, allowing full adaptability to a wide range of structural and design configurations.
Manufactured with architectural-grade aluminum, these systems are ideal for both exterior and interior applications that require strength, clean aesthetics, and compatibility with various types of glass. We offer two assembly systems; quick set and screw race to allow for fast and accurate installation, reducing construction time and costs.
Technical Specifications / Certifications
Key Features of our Storefront System:
From robust profiles to weather and impact-resistant technologies, our aluminum storefronts feature:
Advantages
Do I need a Storefront system? Absolutely.
Beyond being a powerful marketing tool, a storefront system gives your business a whole new presence:
Aluminum profiles:
1 ¾” X 4 ½”
1 ¾” X 4
2 X 4 ½” (CENTER AND OFFSET GLAZED)Supports glazing:
from ¼” to 1” thick
Compliant with:
AAMA, ASTM and NFRC standards
Available finishes:
Anodized, Kynar, Powder Coat
Compatible with:
Commercial hardware and doors
Thermally Broken System

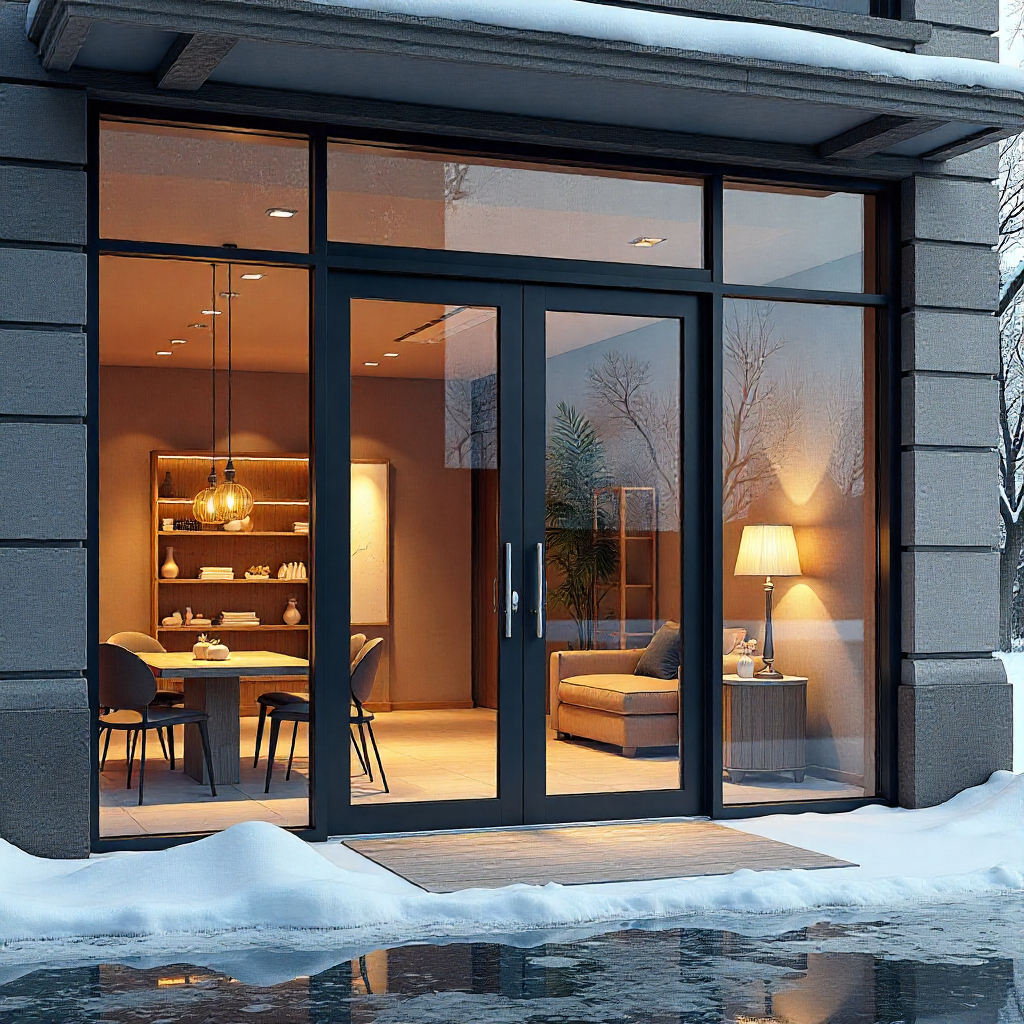

Thermally Broken Storefront: Energy Efficiency and Interior Comfort
Thermally broken storefront systems have become one of the most popular sought-after options for commercial projects thanks to their excellent thermal insulatin and energy efficiency. These systems reduce heat transfer, helping maintain stable indoor temperatures and a more comfortable environment, while contributing to energy savings.
Designed as fully integrated solutions, our thermally broken systems offer impact resistance, durability and optimized thermal performance. To further enhance energy efficiency, clients may opt for tempered glass or insulated glass (IG) units.
Our systems are delivered as complete pre-glazed solutions including all required harware and materials for a smooth and efficient installation process.

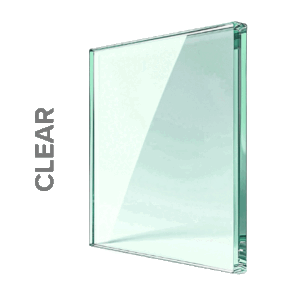

GLASS TYPES

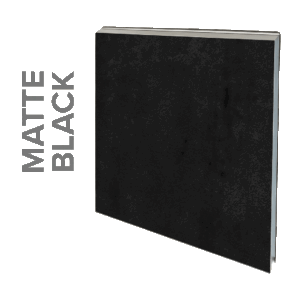

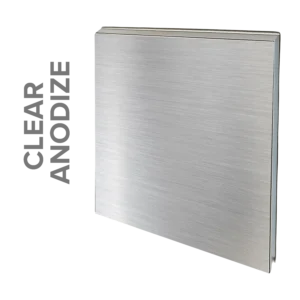

DOOR FINISHES
Series
A Range of Series to Suit Any Project
The aluminum storefront system line offers two main glazing configurations: center glazed and offset glazed, both compatible with insulated glass and monolithic annealed or tempered glass.
Our standard components are supplied in 24-foot lenght and we hace in-house extrusion capabilities to manufacture custom lenght according to your projects's requirements.

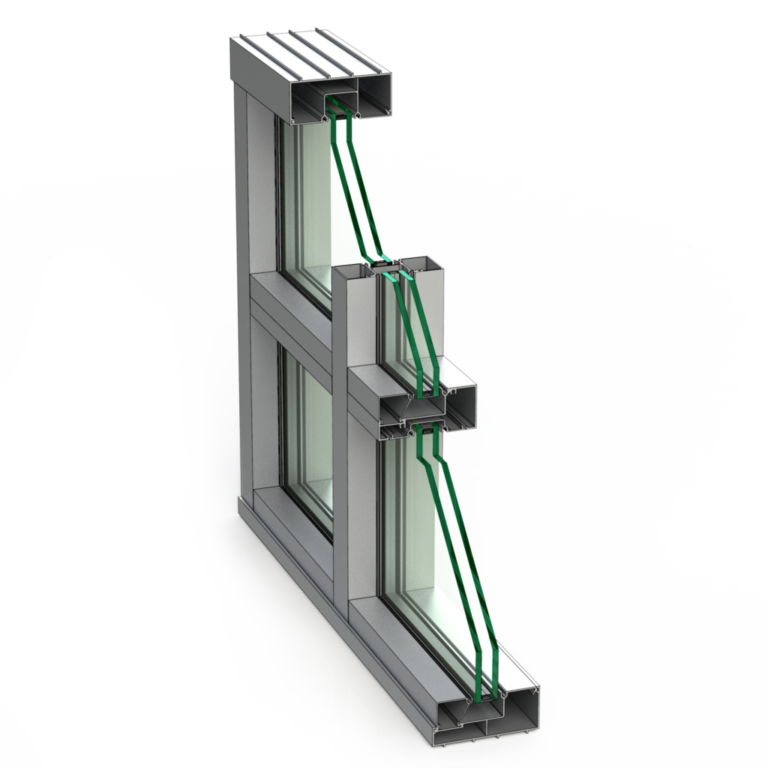

250DT Series (2" X 4½" Center Glazed for 1" Glass) Thermal and Non-Thermal
Engineered to easily accommodate 1″ insulated glass, the 250 seriess offers a wide selectin of extresions and accesories to adapt to diverse job conditions, ensuring efficiency and versatility. Available in 2″ x 4 ½” sectios with a 1 ¼” glass pocket. Entrance doord can also be customized with a dedicated filler insert, providing design flexibility and a cost efficiency.

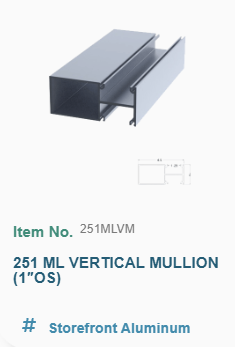

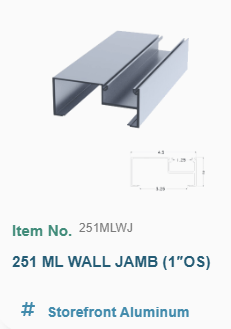

251DT Series (2" X 4½" Offset Glass) Thermal and Non-Thermal
Featuring a thermally broken aluminum frame, this series reduces heat transfer and improves interior comfort. It offers a variety oh handle, finish and glass options to customize the project’s aesthethics. Ideal for both exterior and interior applications, it helos reduce energy costos and meets NFRC standards.

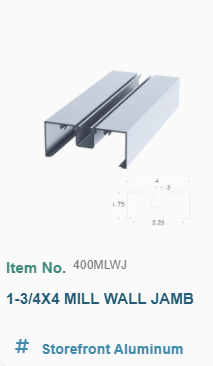

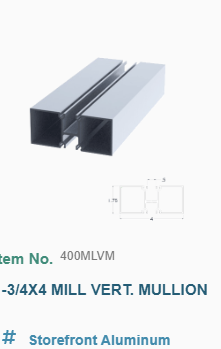

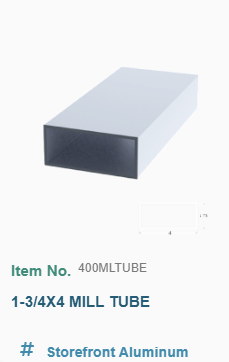

400 Series (1 ¾” x 4” Center Glaze for ¼” Glass)
An economical and efficient option, the 400 series meets industry standards for both interior and exterior applications. It is compatible with all types of standard entrance door hardware, including single or double-action doors. ITs design allows for either shop or field fabircation and can be reinforced to meet higher structural demands.

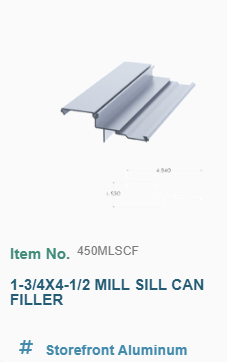

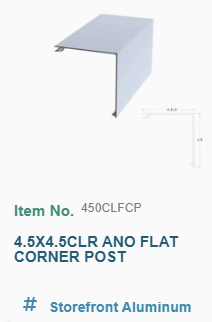

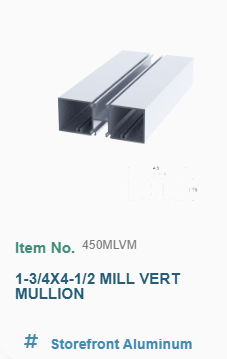

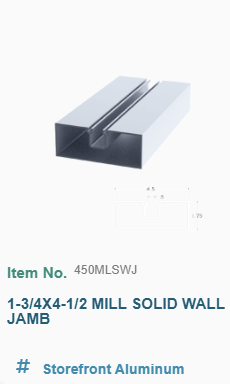

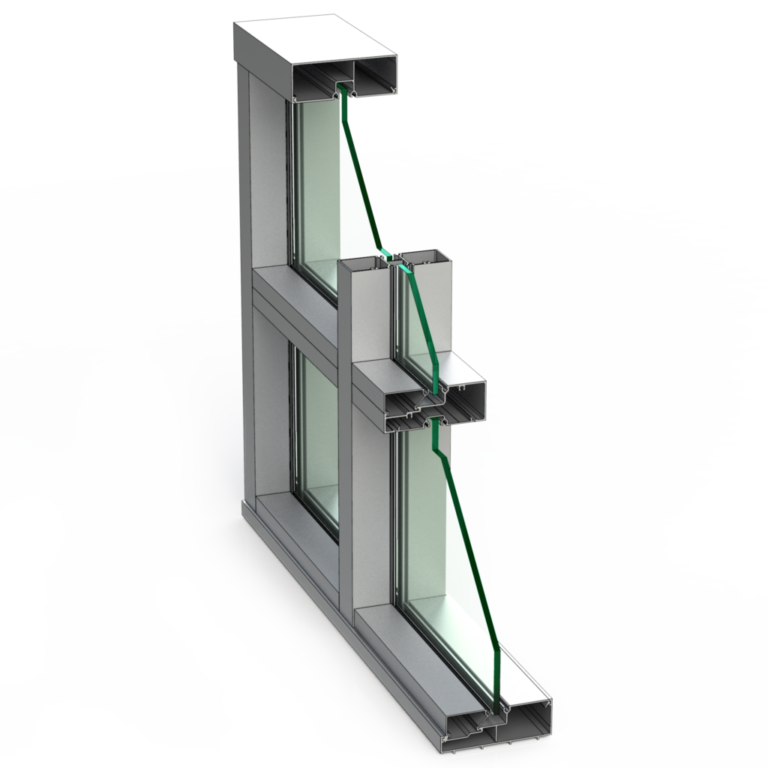

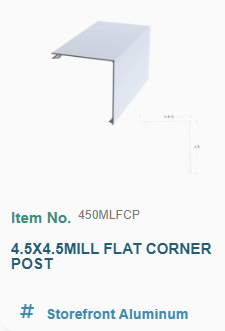

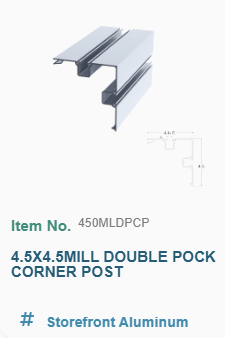

450 Series (1 ¾” x 4½” Center Glaze for ¼” Glass)
Designed for high performance, the 450 series provides greater strength for demanding exterior applications. Versatile for shop or field fabrication, it can be reinforced to meet mor stringent requirements. Compatible with all standard door hardware and available with reinforced extrusion options.
Ready to elevate your next project?
Tell us your specs or architectural plan and receive direct support from our technical team to determine which storefront system is right for you.
👉 Fill out the form and let us help you build with precision and efficiency.
